Product introduction:
Double deck roll forming machine often used in the create roof panels or gutters for the purpose of home construction .Double deck Roll forming is a manufacturing process that requires rollers to design something by pressing and rolling it. Our team of technical professionals manufactures this machine by making use of fine grade components with the help of advanced technology in adherence with defined industry norms. To fulfill the diverse application requirements of clients, this Double Deck Roll Forming Machine is offered in a range of technical specifications. Patrons can easily avail this roll forming machine at affordable prices.

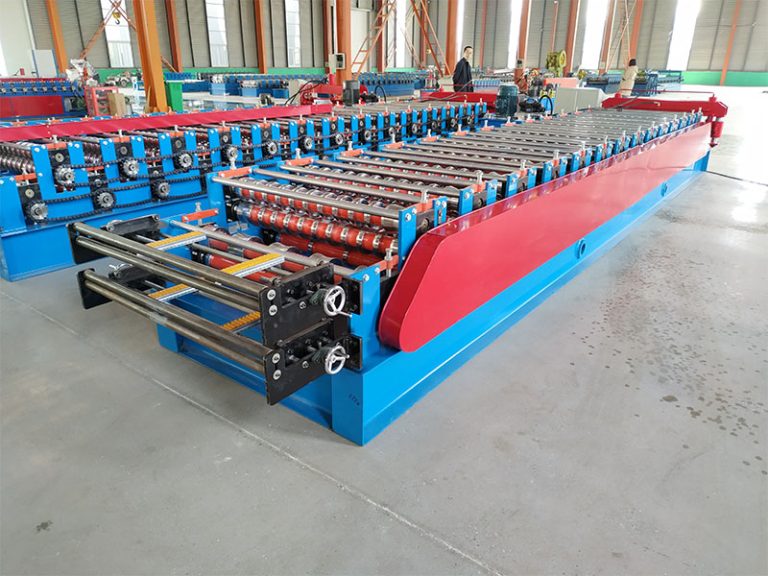

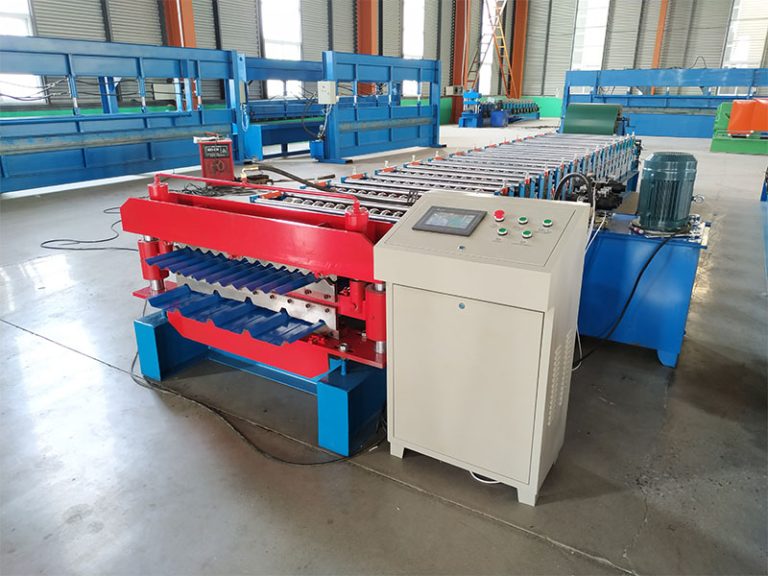

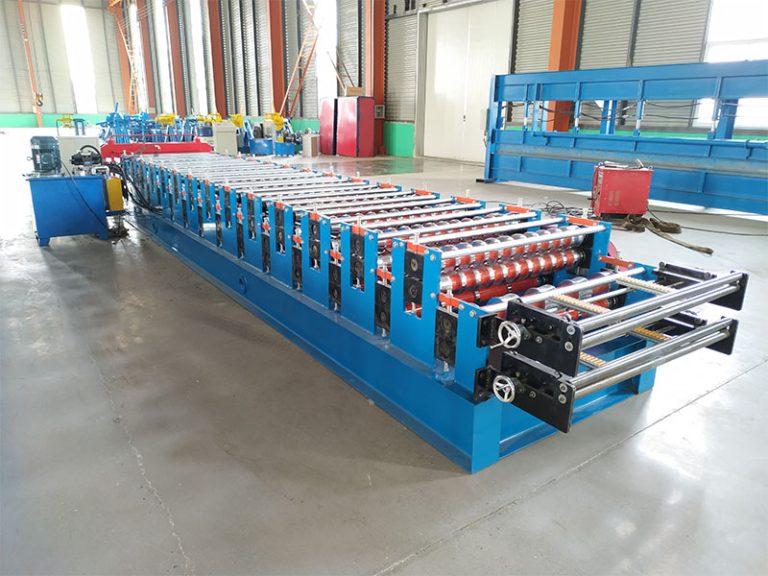

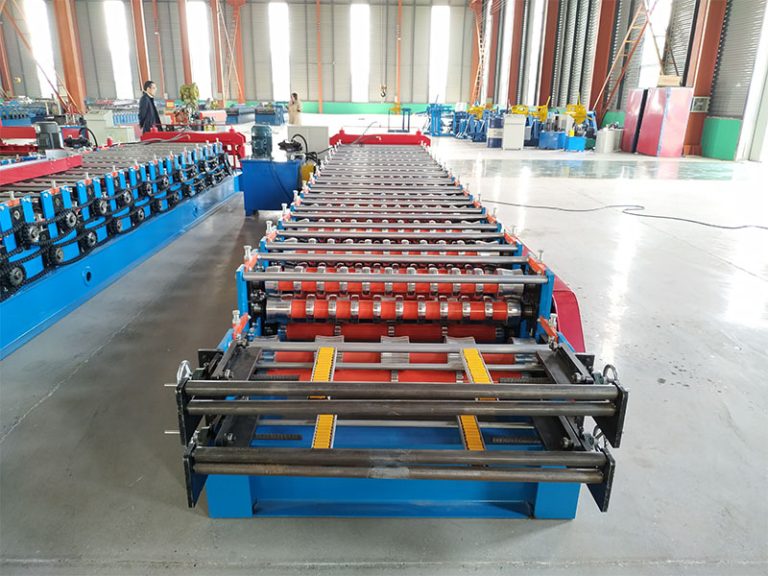

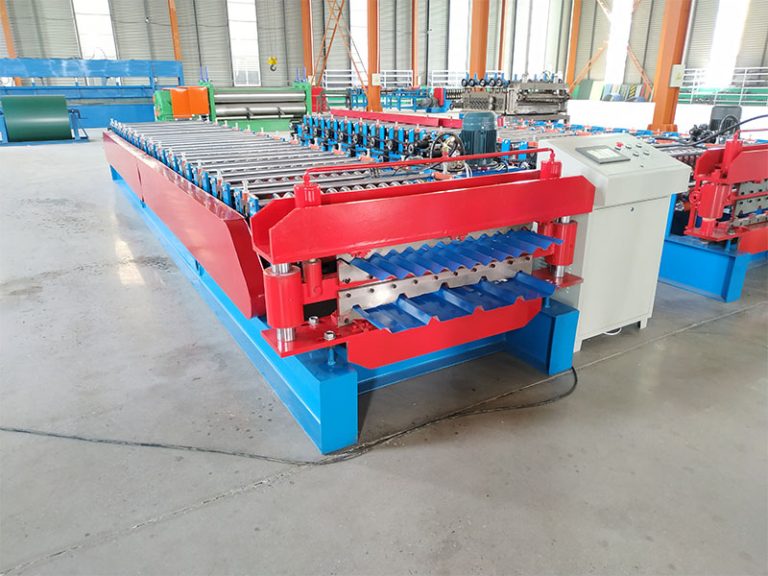

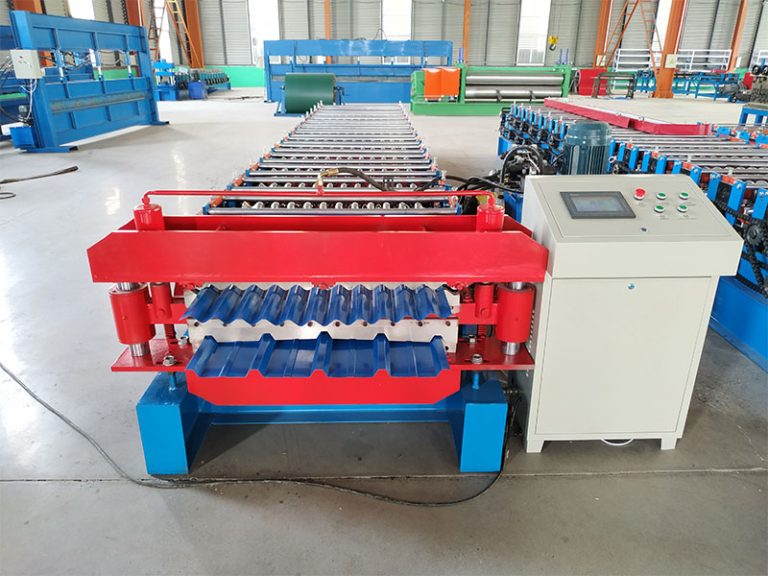

Double machine has up and down two layers, so it can produce two different or same shapes on one production line
Components:
The components of this roof panel machine are: manual/automatic decoiler, roll forming machine, plc control system, hydraulic part, cutting part and discharge table.
Characteristic:
1 High production capacity, A machine capable of producing two types of metal plates.Saves the customer’s production time, improve productivity
2 Easy to fix and operate
3 High operational fluency, beautiful appearance
4 Durability
| Suitable Material | Material | GI, PPGI, PPGL |
| Width | 1000 mm | |
| Thickness | 0.2-0.7 mm | |
| Material of rollers | High grade 45# forged steel, surface hard chromium plating | |
| Rows of rollers | Up layer : 9 stations
Down layer : 11 stations |
|
| Material of shafts | High grade 45# forged steel | |
| Diameter of shafts | 70 mm | |
| Material of blade | Cr12 Heat Treatment | |
| Cutting Mode | Hydraulic Guide Column | |
| Speed | 15-20 m/min | |
| Side plate thickness | 16 mm | |
| Chain size | 1 inch | |
| Total power | 4 kw | |
| Voltage | 380V 50HZ 3Phase | |
| Appearance size (About) | 5800mm*1500mm*1600mm | |
| Weight(About) | 4 tons | |
| Electronic control system | PLC + Touch Screen | |
| Color | Blue, green or yellow or as your requirement | |
| Service life | 20 years | |
Packing Method
Main machine is packaged with plastic film
Transportation
All machines need one 20 feet container to hold
Payment Term
30% deposit by T/T in advance and 70% balance after inspection confirmation before shipment.
Delivery Time
Within 30 days after receiving deposit.
Warranty
Two years, and we will provide technical support for wholelife of the equipment.
If some parts of machine broken within 2 year, we will give customer the spare parts for free. （include chain, bearing, roller,oil pipe, counting wheel） If more than 2 year, maybe some spare parts need to be charged. If machine can not work well, we can teach them online until the machine is perfect. If you need, we can go to your place to assist you. But you need to provide the cost of the engineer.
Price: 11000-15000$/set
Min Order: 1set
Place of Origin: Hebei, China
Certification: CE
Our company's engineers have learned cold bending knowledge in well-known domestic schools, which gives them great advantages in machine design, R&D and manufacturing. We have also hired many well-known designers in the industry to ensure that we can complete the products you want.
Generally speaking, the machine takes about 40 days to complete, if you need a machine urgently, we can make it urgently, because I have a large number of spare parts.
Because we insist that every factory should put quality first, we make the machines more automated, more reliable and accurate, and have a longer service life. The equipment can be used for nearly 20 years, and we provide lifetime after-sales service.
Product quality is the ultimate, the biggest after-sales service is service, 26 years of production experience, to be a service company that you have the strength to guarantee
Botou Shitong Cold Roll Forming Machinery Manufacturing Co.,Ltd.
