Product introduction:

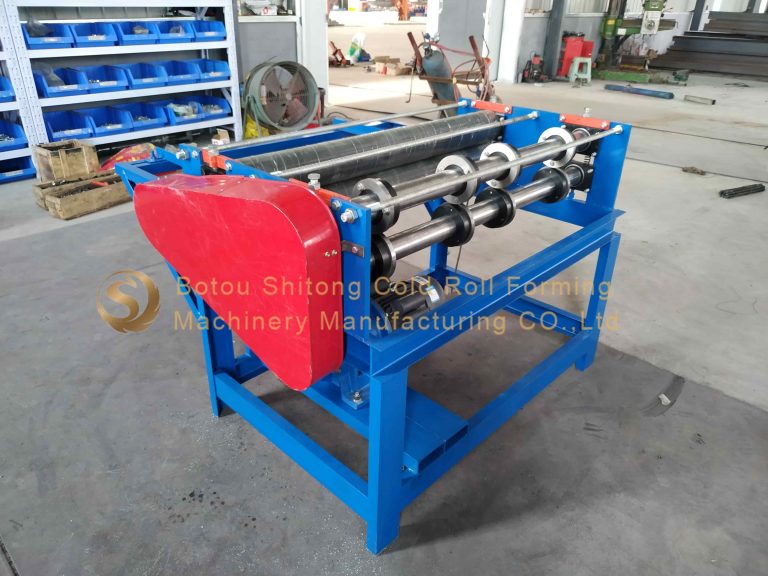

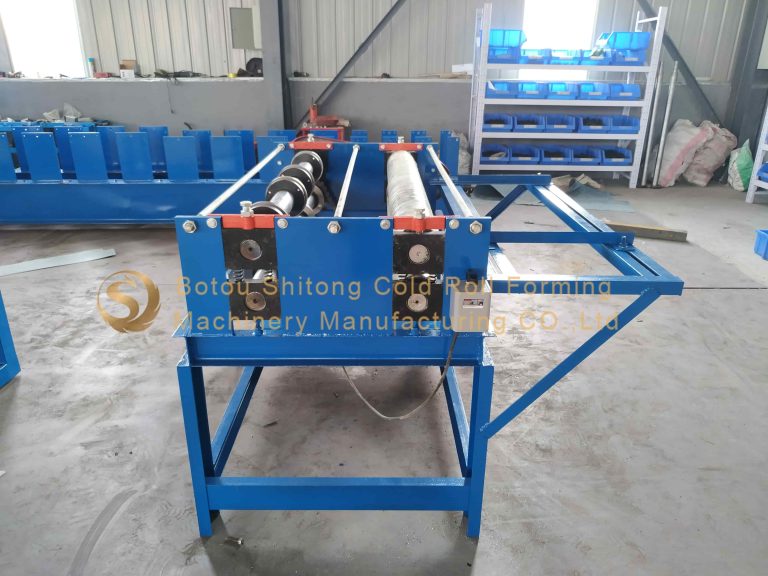

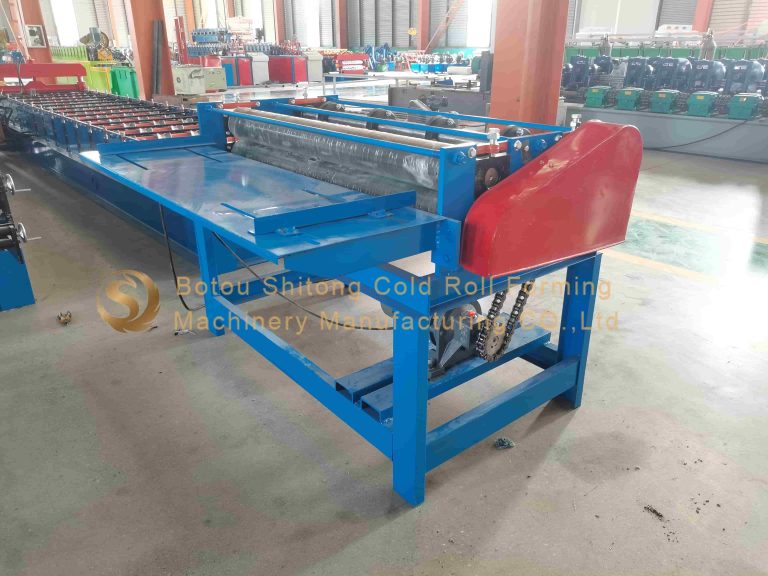

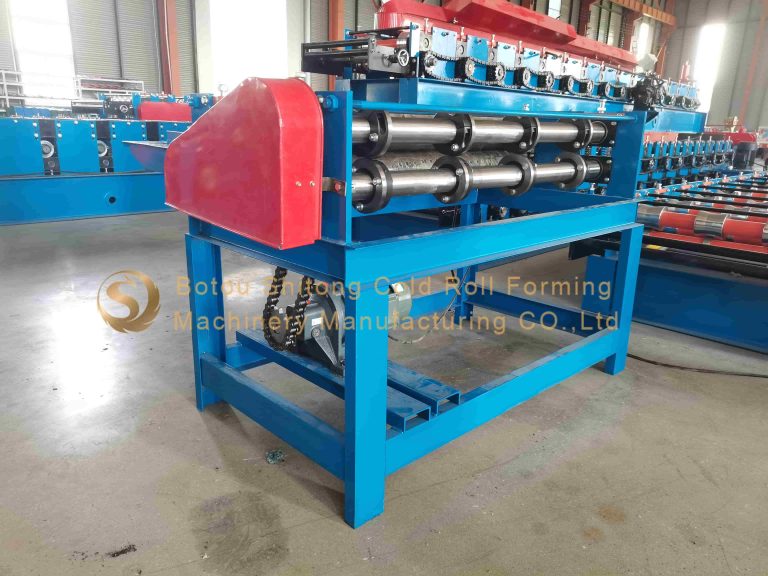

Slitting machine is wide longitudinal cutting roll material equipment. So every industry in the use of the word, we can learn from the range.
| Raw material | |
| material spec | colored steel sheet, galvanized steel sheet, aluminum sheet |
| thickness of coil sheet | 0.3-0.8mm |
| material expand width | 1000 mm |
| Knives | 3 or 4 knives or as your requirement |
| roller material | High grade NO. 45 forged steel with 0.05mm hard chrome plating |
| shaft material | High grade NO. 45 carbon wrought steel |
| cutting blade | Cr12 mould steel with quenched treatment |
| diameter of shaft | 70mm or as your requirement |
| Productivity | 15-20 m/min |
| hydraulic station power | 1.5 KW |
| controlling system | famous PLC computer control |
| material of cutting table | Cr 12 mould steel with quenched treatment |
| hydraulic oil | 40# hydraulic oil |
| Electric tension | 380V 50 Hz 3 Phase or as your requirements |
Packing Method
Main machine is packaged with plastic film
Transportation
All machines need one 20 feet container to hold
Payment Term
30% deposit by T/T in advance and 70% balance after inspection confirmation before shipment.
Delivery Time
Within 30 days after receiving deposit.
Warranty
Two years, and we will provide technical support for wholelife of the equipment.
If some parts of machine broken within 2 year, we will give customer the spare parts for free. （include chain, bearing, roller,oil pipe, counting wheel） If more than 2 year, maybe some spare parts need to be charged. If machine can not work well, we can teach them online until the machine is perfect. If you need, we can go to your place to assist you. But you need to provide the cost of the engineer.
Price: 1000$/set
Min Order: 1set
Place of Origin: Hebei, China
Certification: CE
Our company's engineers have learned cold bending knowledge in well-known domestic schools, which gives them great advantages in machine design, R&D and manufacturing. We have also hired many well-known designers in the industry to ensure that we can complete the products you want.
Generally speaking, the machine takes about 40 days to complete, if you need a machine urgently, we can make it urgently, because I have a large number of spare parts.
Because we insist that every factory should put quality first, we make the machines more automated, more reliable and accurate, and have a longer service life. The equipment can be used for nearly 20 years, and we provide lifetime after-sales service.
Product quality is the ultimate, the biggest after-sales service is service, 26 years of production experience, to be a service company that you have the strength to guarantee
Botou Shitong Cold Roll Forming Machinery Manufacturing Co.,Ltd.
